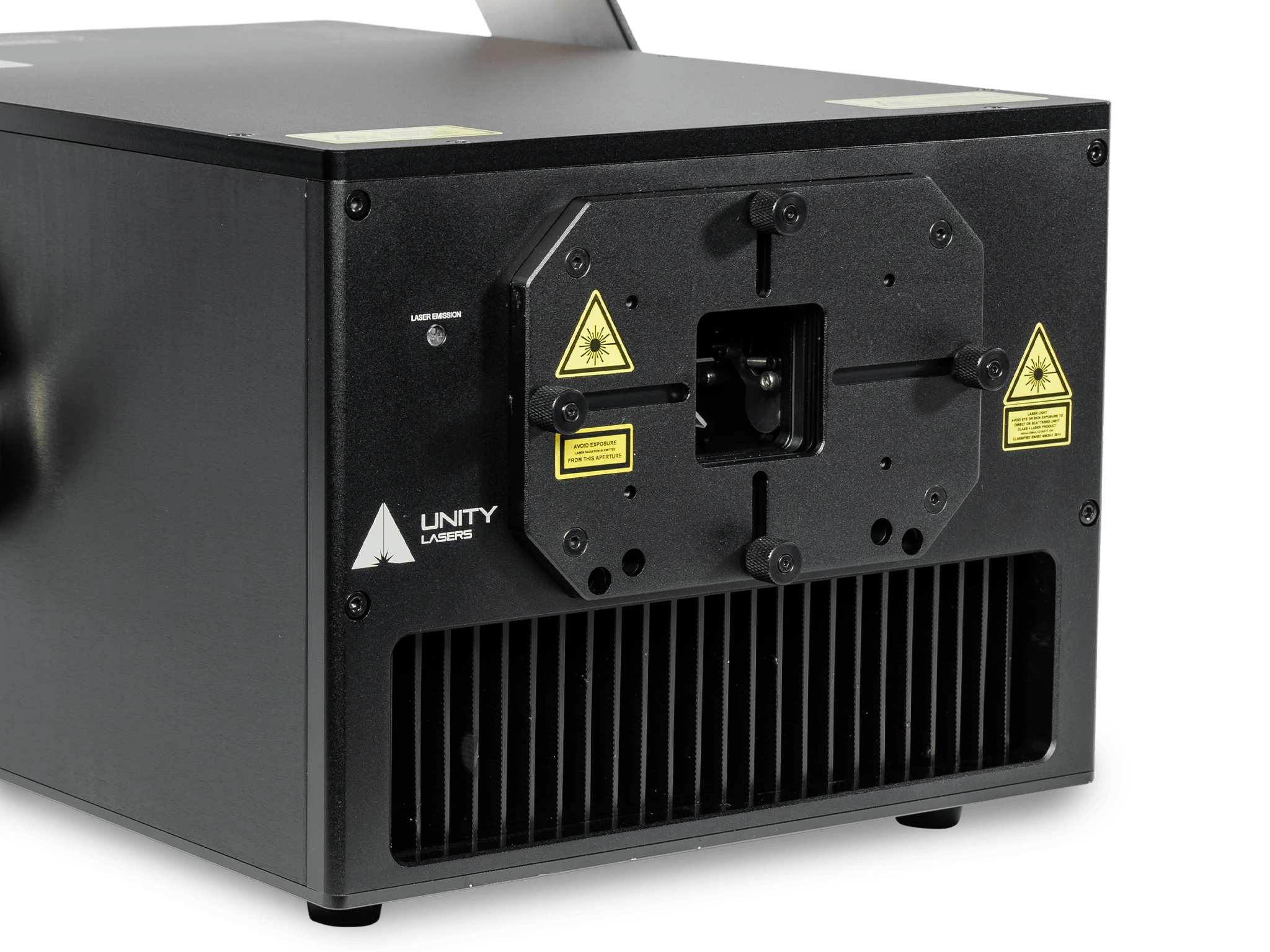

| Product Name: | Unity ELITE PRO 40 FB4 (IP65) |
| Type Of Laser: | Full-colour, Semiconductor diode laser system |
| Guaranteed Optical Output: | >40W |
| Suitable For: | Lighting professionals: arena sized venues (up to 50,000 people), larger outdoor shows. Beam show, text, graphic, and mapping capable |
| Control Signal: | Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android] |
| Scanning System: | 30,000 points per second @ 8° |
| Scan Angle: | 45° |
| Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
| Weight: | 22kg |
| Package Includes: | Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, outdoor RJ45 connectors, manual, quickstart guide, variance card |
| R | G | B [mW]: | 11,000 | 14,000 | 16,000 |
| Beam Size [mm]: | 6 x 6 |
| Beam Divergence: | <1.2mrad [Full Angle] |
| Modulation: | Analog 100kHz |
| Power Requirements: | 100-240V/50Hz |
| Consumption: | Max. 750W |
| Operation Temperature: | (-10°C) - 45°C |
| Ingress Rating: | IP65 |
| System Features: | All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out |
| Laser Safety Features: | Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate |
| Notice: | *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output |
| Dimensions [mm]: | Depth: 439 | Width: 408 | Height: 211 |
