Unity RAW 10 (ILDA + DMX)
Item Code: RAW10
Price: $4,626.00 incl. GST
Minimum : 1
Maximum : 0
If an item is not in stock at our Australian warehouse, it will be shipped directly from our supplier. This may require a lead time of 3–4 weeks.
Please contact us to confirm current stock availability.
UNITY RAW SERIES
The RAW series laser projectors are impactful RGB lasers for hobbyists and semi-professionals.

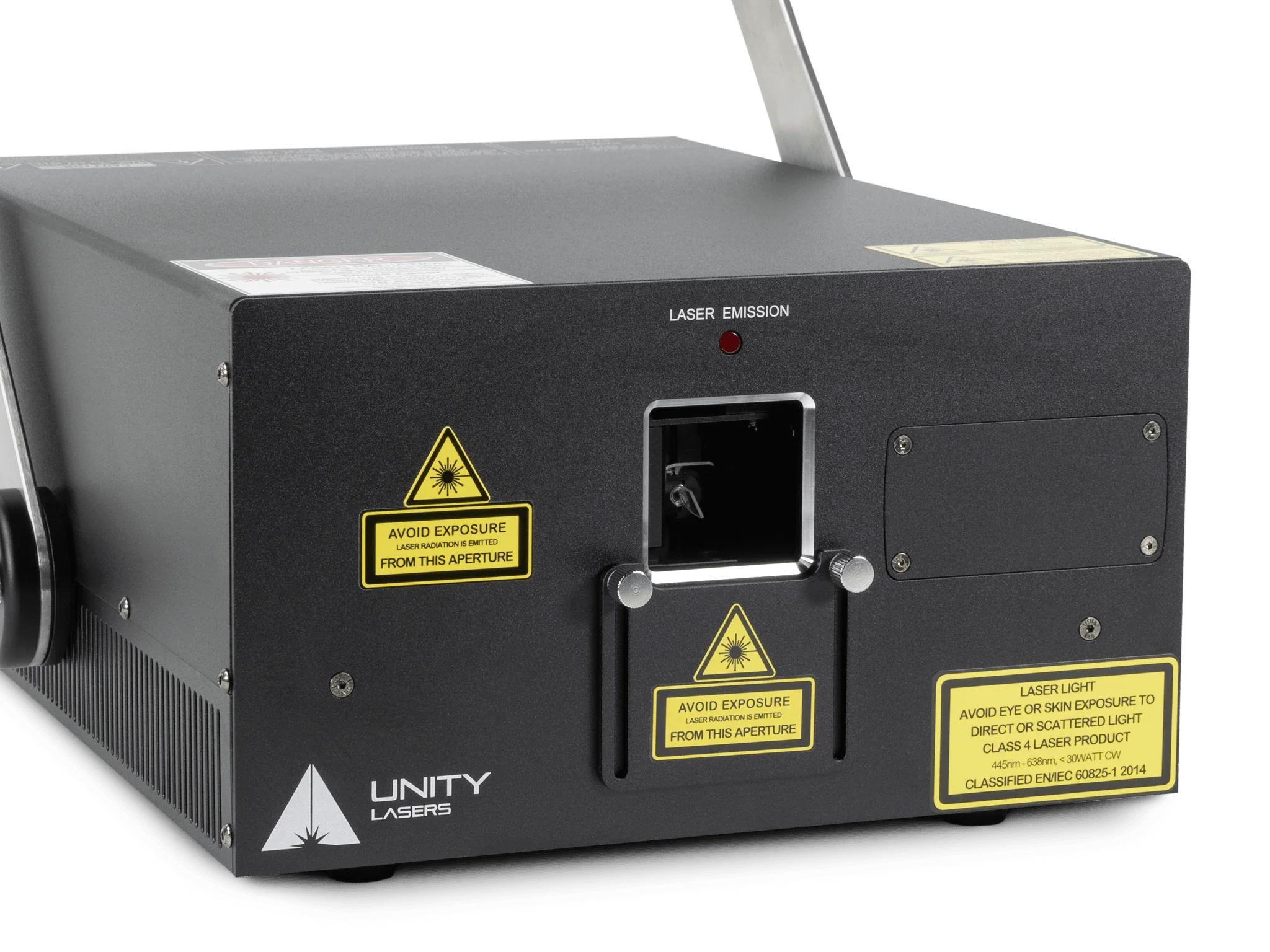

 | Unity RAW 10 (DMX + ILDA) The Unity RAW 10 is a 10-watt full-colour RGB diode-based ILDA and DMX compatible laser projector.
It is designed for those who want an economically friendly laser show system that has the power to produce beautiful aerial beam effects and high-resolution laser graphics, logos and text. This RAW laser projector is suitable for semi-professionals and hobbyists and can be used in large clubs and venues. |
What is in the Package
| UNITY laser projector |
Mains cable |
ILDA cable |
E-STOP Remote |
E-STOP XLR cable |
|
Set of safety keys |
Quality certificate | User Manual | | |
Specifications
| Product Name: | Unity RAW 10 (DMX+ILDA) |
| Type Of Laser: | Full-colour, Semiconductor diode laser system |
| Guaranteed Optical Output: | >10W |
| Suitable For: | Clubs, DJs, large indoor venues (over 5,000 people), medium sized outdoor shows. Beam show, text, graphic, and mapping capable |
| Control Signal: | DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control) |
| Scanning System: | 30,000 points per second @ 8° |
| Scan Angle: | 50° |
| Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
| Weight: | 12kg |
| Package Includes: | Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, manual, quickstart guide, variance card, carton packaging |
| R | G | B [mW]: | 2,700 | 2,700 | 4,800 |
| Beam Size [mm]: | 5 x 3 |
| Beam Divergence: | <1.1mrad [Full Angle] |
| Modulation: | Analog 50kHz |
| Power Requirements: | 100-240V/50Hz |
| Consumption: | Max. 350W |
| Operation Temperature: | 10-40 °C |
| Ingress Rating: | IP4X |
| System Features: | Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings |
| Laser Safety Features: | Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate |
| Notice: | *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output |
| Dimensions [mm]: | Depth: 340 | Width: 247 | Height: 148 |
